Torsendiff Dana 30, 27 splines, Volvo, kit incl. bearing in the group ACCESSORIES / MOTORSPORT & TUNING / DRIVETRAIN / DIFFLOCK / LSD at TH Pettersson AB (111-b00588013)
Torsendiff Dana 30, 27 splines, Volvo, kit incl. bearing
Torsendiff Dana 30, 27 splines, Volvo, kit incl. bearing
Torsendiff Dana 30, 27 splines, Volvo, kit incl. bearing

Torsendiff Dana 30, 27 splines, Volvo, kit incl. bearing

Torsendiff Dana 30, Volvo 140, 240, 740 and 940 (1030, 1031, 1041) and the alloy shaft (1030) set at 240, 27-splines. Including 2pcs diff stock and H-feeder wrap. Read more
Article nr: 111-b00588013
Model:
Qty:
  • Information

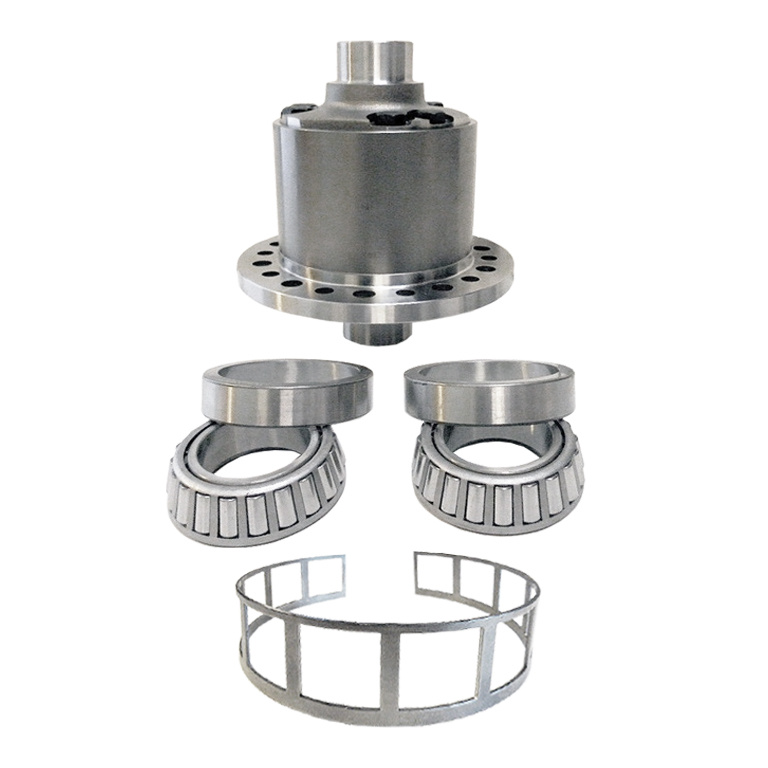

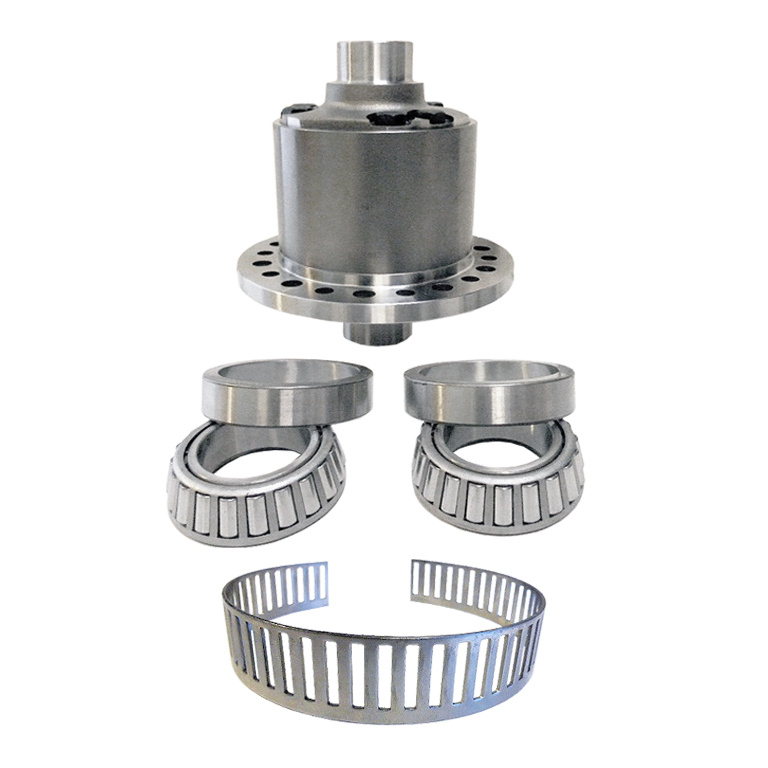

  • Torsendiff Dana 30, Volvo 140, 240, 740 and 940 (1030, 1031, 1041) and the alloy shaft (1030) set at 240, 27-splines. Including 2pcs diff stock and H-feeder wrap.

    Note:
    Use 80-90 oil or "finer" 80-140. it is a drive gear. So LSD oil should definitely not be used. Recommanded not to use with oil from Valvoline or Napa when it was discovered that these were created noise earlier.

    Check the bolts for the crown wheels so that they do not bottom, there are both 20mm and 25mm long bolts for the crown wheel original.

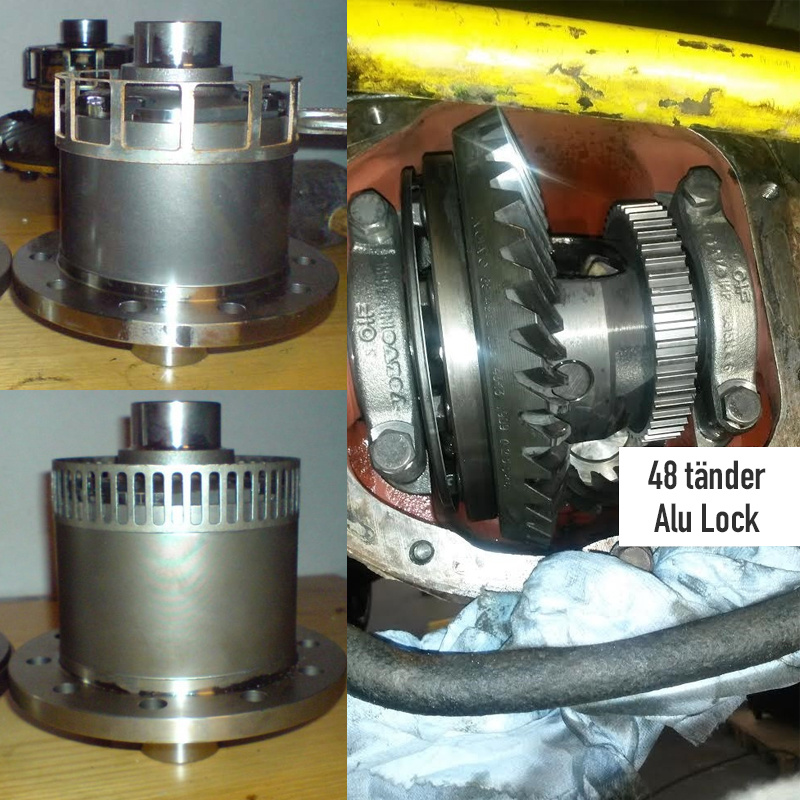

    Speedometer wreath, 48 teeth: For rear axles with aluminum cap, some are Volvo 240, 940 and some 740.
    Speedometer wreath, 12 teeth: For rear axles with metal cover.

    Tightening torque:
    Overrun 50-70 Nm
    Wheel. Bolt without flange 70-80 Nm
    Wheel. Bolt with flange 90-110
    Carrier M20x1.5 200-250 Nm

    Quantity:
    1pc
